Irrigation - Plumbing - Swing Joint

Connects Heads to Lateral Pipes

This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.

Minimizes overall system depth underground
Swing motion allows for easy and accurate depth setting of the sprinkler head
Allows easy parallel connection of sprinkler heads to main irrigation line

The swing pipe assembly is Rain Bird or Hunter brand depending the product availability.

Equivalents:

Rain Bird Model	Rain Bird SKU	Irrigation Depot	Dimensions
SA6050	A50896	RB-SA6050-SJ-506	1/2" MPT x 1/2" MPT x 6"
SA65075	A50897	RB-SA65075-SJ-7506	1/2" MPT x 3/4" MPT x 6"
SA125050	A48035	RB-SA125050-SJ-512	1/2" MPT x 1/2" MPT x 12"
SA5	A17080	RB-SA6050-SJ-506	1/2" MPT x 1/2" MPT x 6"
SA65	A17081	RB-SA65075-SJ-7506	1/2" MPT x 3/4" MPT x 6"
SA75	A17082	RB-SJ-706	3/4" MPT x 3/4" MPT x 6"

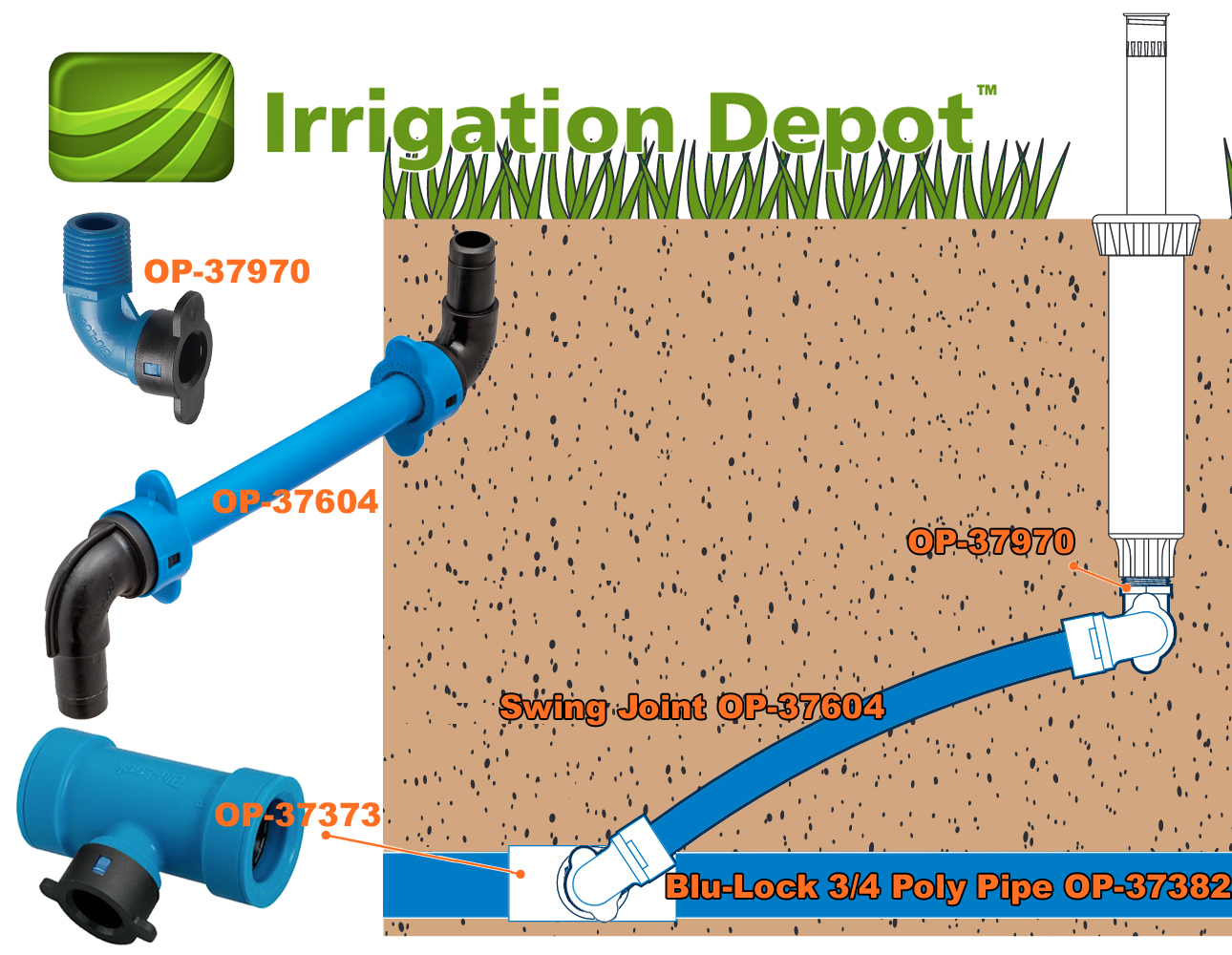

Example of a swing joint connection on a polyethylene or PVC pipe.

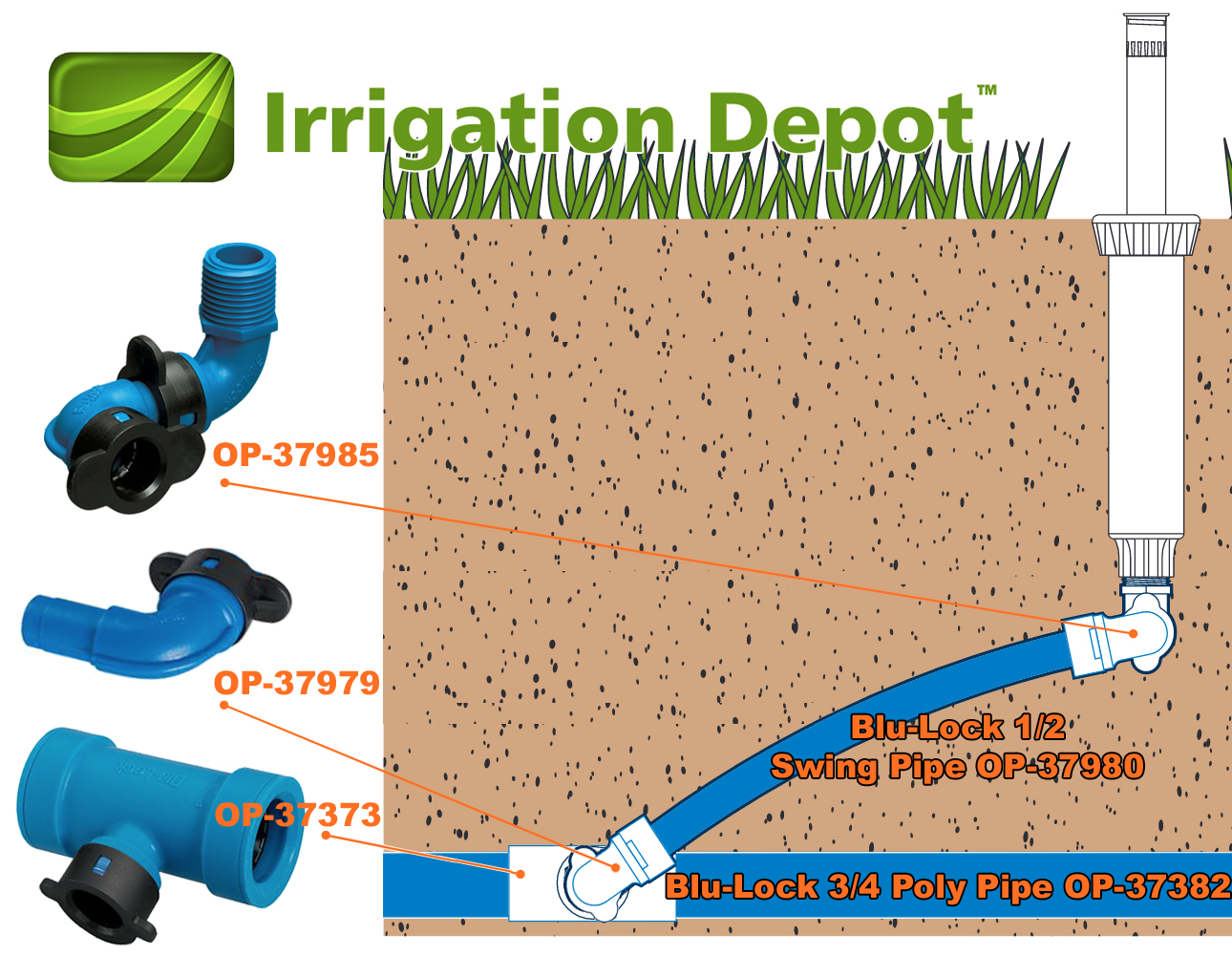

Swing joint assembly on polyethylene pipe

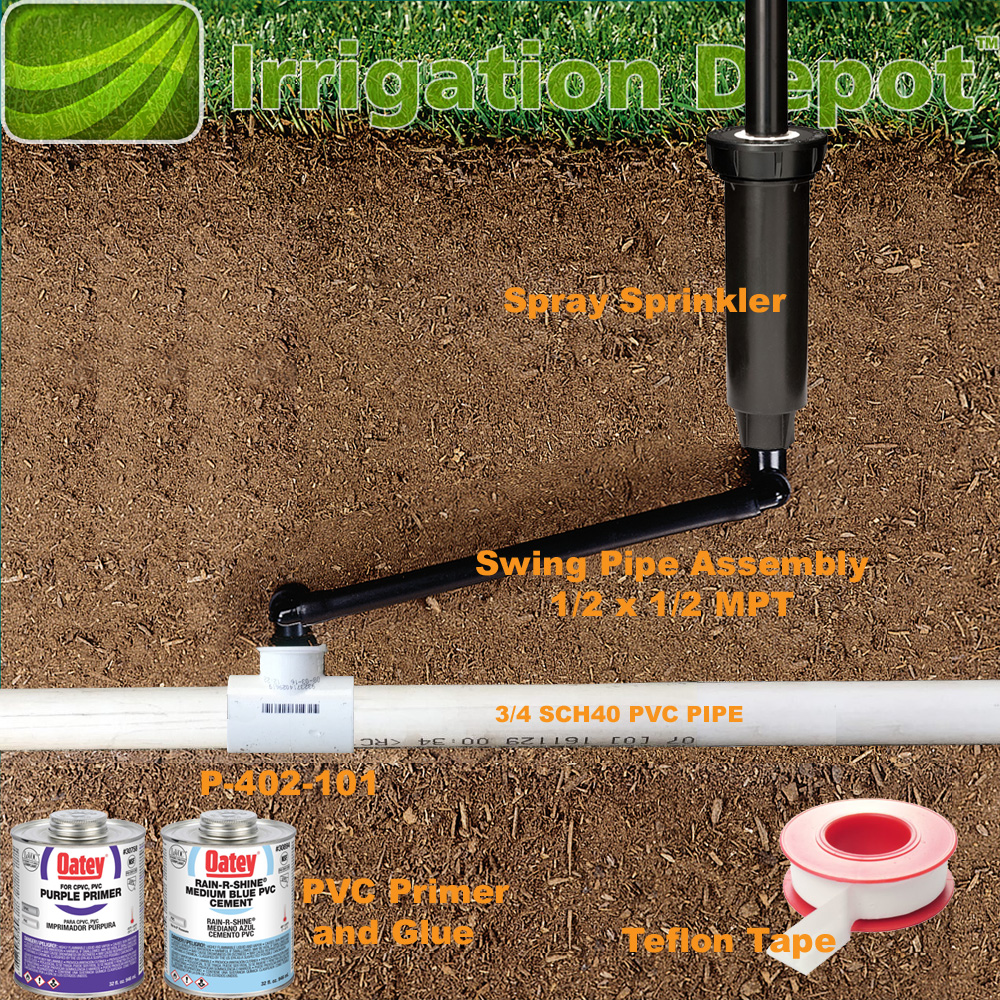

Swing joint assembly on PVC pipe

Swing Pipe Assembly

Swing Pipe Assembly
