Hunter® Soil-Clik Moisture Sensor Kit

Click image to enlarge

Shuts Down Irrigation When Desired Moisture Level Has Been Reached

The Soil-Clik simplifies soil moisture sensing. The Soil-Clik probe uses proven technology to measure moisture within the root zone. When the probe senses that the soil has reached its desired moisture level, it will shut down irrigation, preventing water waste.

Soil-Clik has two components: A moisture sensor probe, which is placed in the soil, and an electronic module, which communicates with the probe and the controller. The probe is easy to install—simply bury it to the correct root depth for your plant material. It can be placed up to 1000 feet from the controller. Easy push button operation allows adjustments to the desired moisture level, with an immediate update of actual measurements.

The module attaches to all AC powered Hunter controllers and will work with most other manufacturers’ AC powered controllers. Soil-Clik can be programmed to shut down irrigation when it senses adequate moisture.

Backed by Hunter’s 5-year warranty, the Soil-Clik is an effective water-saver either by itself or as a companion with Solar Sync® for an environmentally responsive solution.

Features:

  • Soil moisture level and status at a glance
  • Shuts down irrigation when desired moisture level has been reached
  • One-touch override allows soil moisture bypass for special conditions
  • Low voltage outdoor enclosure powered by host controller
  • Simple installation allows probe to be up to 1000 ft. from controller
  • Connect to Hunter sensor inputs, or use to interrupt common wires in virtually any 24 VAC irrigation system
  • Compatible with most non-Hunter controllers without sensor inputs
  • Ideal companion sensor to Solar Sync®
  • Warranty period: 5 years
Specifications:
  • Max distance, control module to controller: 6 ft.
  • Max distance, control module to sensor probe: 1000 ft.
  • Input power: 24 VAC, 100mA max
  • Output: Normally-closed dry contact closure
  • Enclosure: NEMA 3R, indoor/outdoor
Dimensions Soil-Click:
  • Height: 41⁄2"
  • Width: 31⁄2"
  • Depth: 11⁄4"
  • Power: 24 VAC,
  • 100mA max Wire
  • Leads: 32"

Dimensions Sonde:

  • Diameter: 7⁄8"
  • Height: 31⁄4"
  • Wire to Probe: 1000 ft. max
  • 18 AWG Direct Burial Wire
  • Wire Leads: 32"

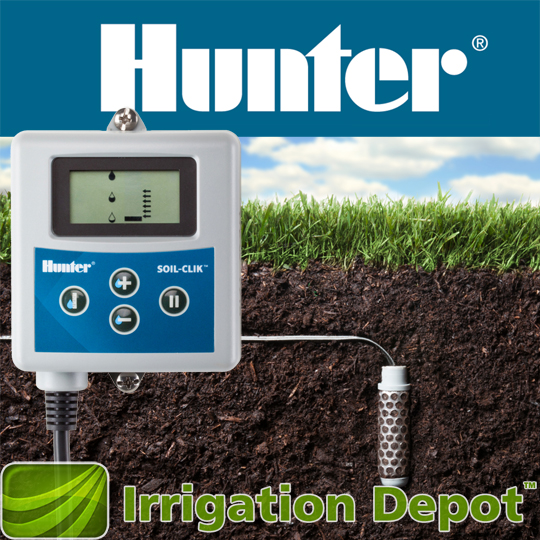

Hunter Soil-Clik soil moisture sensor
