1 Outlet Hose Faucet Simple Timer

SKU : DIG-BOHE-BT

DIG's BOHE-BT Bluetooth Hose End Timer (tap timer) features Bluetooth Low Energy wireless technology combined with a full-function, waterproof timer to provide long-lasting, reliable irrigation control via your smartphone or tablet. Download DIG’s free DIG BTT app to control any number of DIG Bluetooth hose end timers and controllers through supported Android or iPhone smart devices from up to 50 feet (15 meters), line of sight.

The timer's rugged and waterproof (IP 64) design is ideal for use in residential home garden applications or where AC power is unavailable. It can operate for up to one year on two AA alkaline batteries.

Features:

Operates with any supported Android or iPhone smart device.
Instantaneous communication with smartphone once connected.
Programmed entirely using accompanying smartphone app.
FCC and EC certified Bluetooth enabled.
Easy to set up, install and operate:

Simply install two AA batteries into the waterproof timer’s battery compartment. Download DIG’s BTT free app to your smartphone, then connect and control any number of DIG’s Single Button Smart Bluetooth Timers from the palm of your hand.

Available in the following languages, English, Spanish, Italian, Greek, French, Portuguese, Hebrew, Russian and Chinese Simplified (with more to come) (with more to come).
Bluetooth communication range: up to 50 feet (15 m).
Non-volatile memory retains program and timer integrity (excluding time).
Manual irrigation cycle can be performed via the app, or the timer’s manual program button or via the solenoid.
Semi-automatic, automatic or manual operation.
Latching solenoid with encapsulated plunger for reliable operation.
Completely waterproof (IP64) - can operate in harsh environments.
Environmentally friendly; utilizes RoHS compliant components.
One button to reset the timer to factory defaults or to run manually without a smartphone.
Battery life up to one year.
Environmentally friendly and energy independent; utilizes RoHS compliant components.

Specifications:

Type: DC latch
Waterproof: IP64 certified
Connection and program mode: Android or iPhone smartphone, Bluetooth®
Controller power input: constant 11-volt
Operation interface: one button for reset and manual run
Power source: two AA alkaline batteries (not included)
Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wire
Operating pressure: 10 to 120 PSI (.7 to 8.3 bar)
Flow range: up to 14.2 GPM (up to 53 L/H)
Temperature range: 38-130°F (3-54°C)
Inlet and outlet: female hose thread (FHT x MHT) or British standard thread (FBSP X MBSP)
Materials:
- Timer housing: high-impact plastic
- Inline valve and solenoid: glass reinforced nylon
Weight without the box: .430 lb
Dimensions: 5.5” Height X 4.3” Width X 3.125” Depth
Weight with the box: .530 lb
Dimensions: 5.125” Height X 4.37” Width X 2.875” Depth

Fonctionnalités de programmation via smartphone

Représentation graphique du calendrier de programmation.
Jours hebdomadaires, pairs / impairs du mois ou horaires de 1 à 30 jours.
Cinq heures de démarrage par jour.
Durée d'exécution du programme de 1 minute à 11 heures et 59 minutes par incréments de 1 minute.

Réglage de la minuterie

Affichez la durée de vie restante de la batterie, la force de la connexion, l'état actuel de l'arrosage de la minuterie et les dernières informations arrosées facilement depuis l'application.
Fonction d'activation du système.
Option de délai de pluie jusqu'à 99 jours avec redémarrage automatique pour la conservation de l'eau.
Budgétisation par mois jusqu'à 200% par incréments de 5%.
Jusqu'à neuf dates d'arrêt programmées par an (empêchant le contrôleur de fonctionner ces jours spécifiques).
Jusqu'à 12 mois d'informations sur l'historique de la durée d'irrigation dans la paume de votre main.
Personnalisation via smartphone pour nommer le contrôleur.
Personnalisation via le smartphone.
Affectation d'une image à un contrôleur à l'aide de l'appareil photo.
Capacités de protection par mot de passe.

Mode Manuel

Exécution manuelle avec durée personnalisée.

Écran numérique du programmateur

Afficher les informations de connexion précédentes de tous les programmateurs précédemment connectés, si vous en avez plusieurs.
Coordonnées de DIG

Dig BOHE-BT Instruction Manual - English

DIG BOHE-BT Bluetooth® Hose End Timer

DIG BOHE-BT Bluetooth® Hose End Timer: Programming & Installation

Digital hose end timer

SKU : DIG-BO9D

The B09D 3/4” Digital Hose End Timer, one in DIG's newest range of hose end timers, offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life with reliable operation. With higher flow rates at lower inlet pressures and a range of programming features, the B09D delivers a reliable and cost-effective solution for residential use. The timer has four start times per day with durations from 1 minute to 12 hours 59 minutes in an operating flow range of .5 to 6.3 gallons per minute, allowing use in a wide range of applications including drip irrigation or micro sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9-volt alkaline battery that can last for over a year.

Features:

3/4” FHT inlet and MHT outlet
Easy programming using six buttons and large LCD display
AM / PM clock
Watering duration from 1 minute to 12 hours 59 minutes in 1 minute intervals
Seven day watering calendar
Four start times per day
Preset program of five minutes watering every day
Electronic battery monitoring that provides constant reading of battery strength
Five part battery strength indication: 4, 3, 2, 1 bar and then flashing one bar on close down
Low battery auto lock out to ensure that the timer valve will not open unless it can close
Low energy use (less than 20 micro amps in standby mode) ensures long battery life
Easy manual operations using Start and Stop buttons.
Rain mode easily accessed by holding the OFF key for three seconds
High water flow at normal water pressures.
Operates on low water flow of less than 0.5 GPM
High strength female hose thread connection with easy removal via spring clip
3/4" FHT inlet with screen and MHT outlet
Powered by one 9-volt alkaline battery with a battery life up to one year
Weather resistant
Three-year limited warranty

Specifications:

Operating pressure 10 PSI to 80 PSI (0.6 – 5.5 Bar)
Flow rate up to 6.3 gpm at 30 PSI (24 L/PM at 2 Bar)
Temperature range: 40°F to 125° F (3° C to 50° C)
Power source: 9-volt alkaline battery (not included)
Solenoid: durable electric motor
Power consumption: 20 micro amps in standby mode
Materials: body ABS, and inner parts of high-impact plastic
Dimensions: 6” D X 4” W x 6.5” H ( 15.2 cm X 10.0 cm X 16.2 cm)

Programming options

Watering duration from 1 minute up to 12 hours and 59 minutes
Duration can be set in one minute increments
Watering frequency: can be programmed in a seven-day watering calendar
- In weekly schedule the controller can be programmed to operate on any days of the week such as Monday, Wednesday, and Friday.

Dig BO9D Instruction Manual - English

DIG B09D & B09DB Battery Operated Hose End Timers (Tap timers): Programming

410BT-000 Battery Powered Bluetooth Controller w/ 3 Valve Adapters For Hunter, Rain Bird & Toro

SKU : DIG-410BT-000

DIG's 410BT-Series Battery Operated Controller features Bluetooth® wireless technology combined with a full function irrigation controller to provide long-lasting, reliable, and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50' (15 meters), line of sight.

The 410BT controller's rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries. The controller includes a single button for manual operation and 3/4" through 2" professional grade in-line valves with flow control.

Specifications

Type: DC (IP68)
Connection and program mode: Android or iPhone smartphone, Bluetooth
Controller power input: constant 11-volt
Operation interface: one button for reset and manual run
Power source: two AA alkaline batteries (not included)
Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
Body: water proof, IP68
Solenoid wire: 8â (20 cm)
Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
Flow range: .1 to 160 GPM (.23 to 36 m3h)
Temperature range: 38 - 130°F (3 - 54°C)
Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
Valve size: 3/4", 1â, 1-1/2â and 2â FNPT heavy duty globe valves with flow control
Materials:
- Controller housing: high-impact plastic
- Inline valve and solenoid: glass reinforced nylon

Programming features via smartphone

Graphical representation of programming schedule
Weekly, Even/Odd days of the month, or 1- to 30-day schedules
Five start times per day
Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Controller Setting

View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
System activation feature
Rain delay option of up to 99 days with automatic restart for water conservation
Budgeting by month of up to 200% in 5% increments
Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
Up to 12 months of irrigation run time history information in the palm of your hand
Customization through smartphone to name the controller
Customization through the smartphone Assigning a picture to a controller using the camera
Password protection capabilities

Manual run

Manual run with customization duration

Controller Scanning Screen

View previous connection information of all timers previously connected to, if you have more than one
Contact information to DIG

Brochure 410BT - English

Manual 410BT - English

DIG Controllers Calalog - English

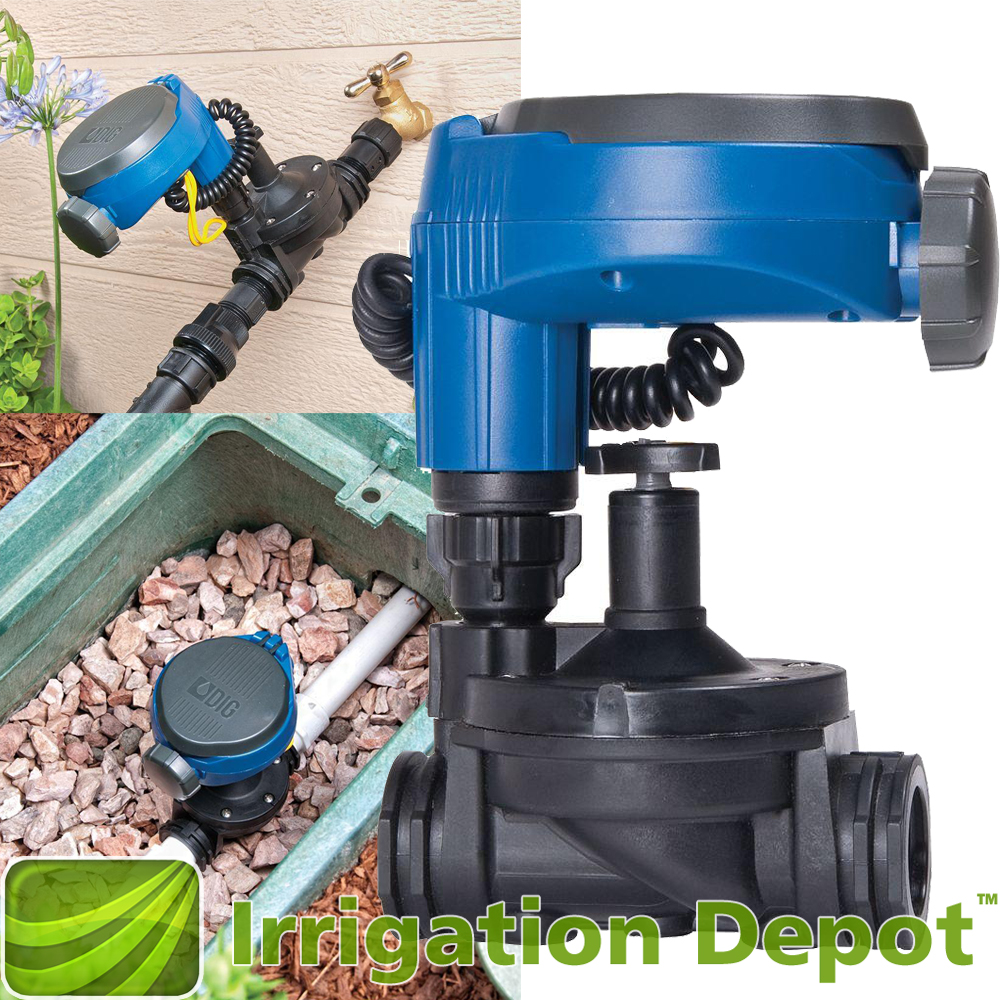

410BT-100 Battery Powered Bluetooth Controller w/ 1" In-Line Valve

SKU : DIG-410BT-100

DIG's 410BT-Series Battery Operated Controller features Bluetooth® wireless technology combined with a full function irrigation controller to provide long-lasting, reliable, and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50' (15 meters), line of sight.

The 410BT controller's rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries. The controller includes a single button for manual operation and 3/4" through 2" professional grade in-line valves with flow control.

Specifications

Type: DC (IP68)
Connection and program mode: Android or iPhone smartphone, Bluetooth
Controller power input: constant 11-volt
Operation interface: one button for reset and manual run
Power source: two AA alkaline batteries (not included)
Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
Body: water proof, IP68
Solenoid wire: 8â (20 cm)
Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
Flow range: .1 to 160 GPM (.23 to 36 m3h)
Temperature range: 38 - 130°F (3 - 54°C)
Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
Valve size: 3/4", 1â, 1-1/2â and 2â FNPT heavy duty globe valves with flow control
Materials:
- Controller housing: high-impact plastic
- Inline valve and solenoid: glass reinforced nylon

Programming features via smartphone

Graphical representation of programming schedule
Weekly, Even/Odd days of the month, or 1- to 30-day schedules
Five start times per day
Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Controller Setting

View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
System activation feature
Rain delay option of up to 99 days with automatic restart for water conservation
Budgeting by month of up to 200% in 5% increments
Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
Up to 12 months of irrigation run time history information in the palm of your hand
Customization through smartphone to name the controller
Customization through the smartphone Assigning a picture to a controller using the camera
Password protection capabilities

Manual run

Manual run with customization duration

Controller Scanning Screen

View previous connection information of all timers previously connected to, if you have more than one
Contact information to DIG

Brochure 410BT - English

Manual 410BT - English

DIG Controllers Calalog - English

Dig 710AP-000 Controller with solenoid Including adapters for DIG, Rain Bird, Hunter and Toro valves

SKU : DIG-710AP-000

The 710AP is a battery operated controller with a two-wire DC latching solenoid, designed for propagation, misting and irrigation cycles. The 710AP provides advanced programming capabilities for all types of commercial, greenhouse and nursery applications, and features logical, revolving menus for simplified programming and review. The controller is fully waterproof and powered by two AA alkaline batteries that can last for up to three years.

The 710AP includes a seven-button keypad, a large, easy-to-read LCD display, intuitive icon-based programming with five start times per day in weekly or cyclical mode, manual run, monthly budgeting, and "rain off" with restart of up to 99 days. The controller also features a propagation mode including cyclical frequencies from 1 minute to 59 minutes or from 1 to 12 hours, and durations in seconds for loop watering with selectable start and stop times.

Features

Powered by two AA alkaline batteries with a safe period of 60 seconds to replace without losing power.
Watering flexibility with a selection of watering frequencies including weekly, odd, even, or cyclical between 1 and 30 days, 1 to 12 hours or 1 to 59 minutes.
Duration can be set in seconds, minutes or hours.
Interval watering in which a cycle is continuously repeated for a desired period every set interval between a start and stop time. Cycles can be repeated daily or be left running indefinitely.
Low battery indicator
Display indicates if irrigation is set to water for the day and if any of the additional programming features are active
Seven buttons with integrated high resolution screen.
Simple, icon-based intuitive programming and EasyFlow™ navigation.
After 15 minutes the controller screen turns off automatically to conserve energy.
Semi-automatic and manual operation with timed countdown for shutoff.
System On/Off button allows the user to turn off the controller’s programming and reactivate it as desired as well as to quickly activate or deactivate a propagation program outside of its set start and stop times when used in propagation mode.
Propagation mode features error catching so that programming mistakes cannot be entered and will automatically update to an allowable entry (run time greater than interval or interval less than run time).
Retractable coiled cord to the solenoid.
Brackets for solenoid and wall mounting options are included.
Utilizes RoHS compliant components.
Reset option allows erasing of all programs to default settings except date and time.
Non-volatile memory holds programs indefinitely without batteries except date and time.
Completely waterproof (IP68).
Rain sensor connection included.
Can be mounted on a range of solenoid valves.
Captured solenoid plunger and spring for easy maintenance.
Easily retrofits to most manufacturers’ valves with one of DIG’s seven adapters.
Controller with solenoid Including adapters for DIG, Rain Bird, Hunter and Toro valves
Three-year warranty.

Specifications

Controller type: DC
Power source: two AA alkaline batteries (not included)
Controller power input: constant 11 volt
Seven keypad buttons with integrated liquid crystal display
Temperature range: 38°F to +130°F (3°C to +54°C)
Latching Solenoid: 7-12 VDC, two-way, normally closed
Solenoid control orifice: .065 (1.65 mm)
Encapsulated solenoid thread: 11/16"-12 UN male thread
Retractable solenoid wire: 8.1” (coiled length when extended, approximately 36")
Completely waterproof (IP68 certified) - can operate in harsh environments
Sensor connection: normally closed 6" (15 cm) AWM 1007 / 1569 16 AWG 300V VW-1-yellow wire
Mounting options: solenoid or valve box mounting
Waterproof (IP68).
- RoHS compliant
Materials:
- Controller housing: high-impact plastic
- Solenoid housing: glass reinforced nylon
- Plunger & spacer: 430F stainless steel
- Plunger rubber cap: EPDM
- O-ring: Buna-N

Programming

Custom programming schedules with a weekly calendar, odd days, even days, intervals from one to thirty (1-30) days utilizing yearly calendar with leap year or 1 to 12 hours and 1 to 59 minutes.
Five start times per day in normal mode, one start and stop time per day with watering intervals of every 1 minute to up to 12 hours in propagation mode.
Duration up to 5 hours and 59 minutes in 1-minute increments in normal mode or from 5 seconds to 59 minutes in 1-second increments in propagation mode.
Monthly seasonal adjustment with option to reduce the program duration setting to 5% of normal or to increase it up to 200% in 5% increments without modifying the controller's program duration in irrigation schedules
Irrigation suspension for up to 99 days with auto-restart; resumes irrigation automatically
Program Off button allows the user to turn off the controller and reactivate it as desired as well as to quickly activate or deactivate propagation programs.
Manual On/Off button opens the valve and utilizes the program run-time to display time left in run. Can be pressed again to quickly shut off the valve.

Manual Instruction 710AP - English

DIG Controllers Calalog - English

DIG 710A Battery Operated Controller: Programming

DIG® BOHE-BT Bluetooth Hose End Timer

DIG BO9D Digital Hose End Timer

410BT Series Bluetooth Battery Operated Controller - Controller Only

410BT Series Bluetooth Battery Operated Controller

710AP Series Battery Operated Propagation Controller
