Prevents outside water from siphoning through an outside faucet and contaminating the drinking water
Prevents outside water from siphoning, through an outside faucet
Fits all standard outdoor hose faucets
Female hose thread inlet x Male hose thread outlet
Hose Bib Anti-Siphon Valve
3/4" Male FHT x 3/4" Female FHT
SKU : P-BF-HOSEVACUUMB
Prevents outside water from siphoning through an outside faucet and contaminating the drinking water
Prevents outside water from siphoning, through an outside faucet
Fits all standard outdoor hose faucets
Female hose thread inlet x Male hose thread outlet
Lead free brass construction
Orbit® 51059 Atmospheric Vacuum Breaker
3/4" Brass
SKU : OP-51059
The Atmospheric Vacuum Breaker is designed to prevent contaminants from entering the main water supply through sprinkler heads. It is not designed to be used as a mainline anti-siphon device.
The Dual Check Valves provide cost-effective backflow protection of the public water supply. This model can be installed in a variety of piping configurations, and in conjunction with a wide range of meter horns, copper setters, and meter boxes.
The straight line, poppet-type construction of this model minimizes pressure drop and provides smooth flow characteristics. It can be installed horizontally or vertically. It is not adversely affected by normal line pressure surges, will not cause water hammer, and operates without chatter or vibration. Maximum Working Pressure: 150psi (10.3 bar).

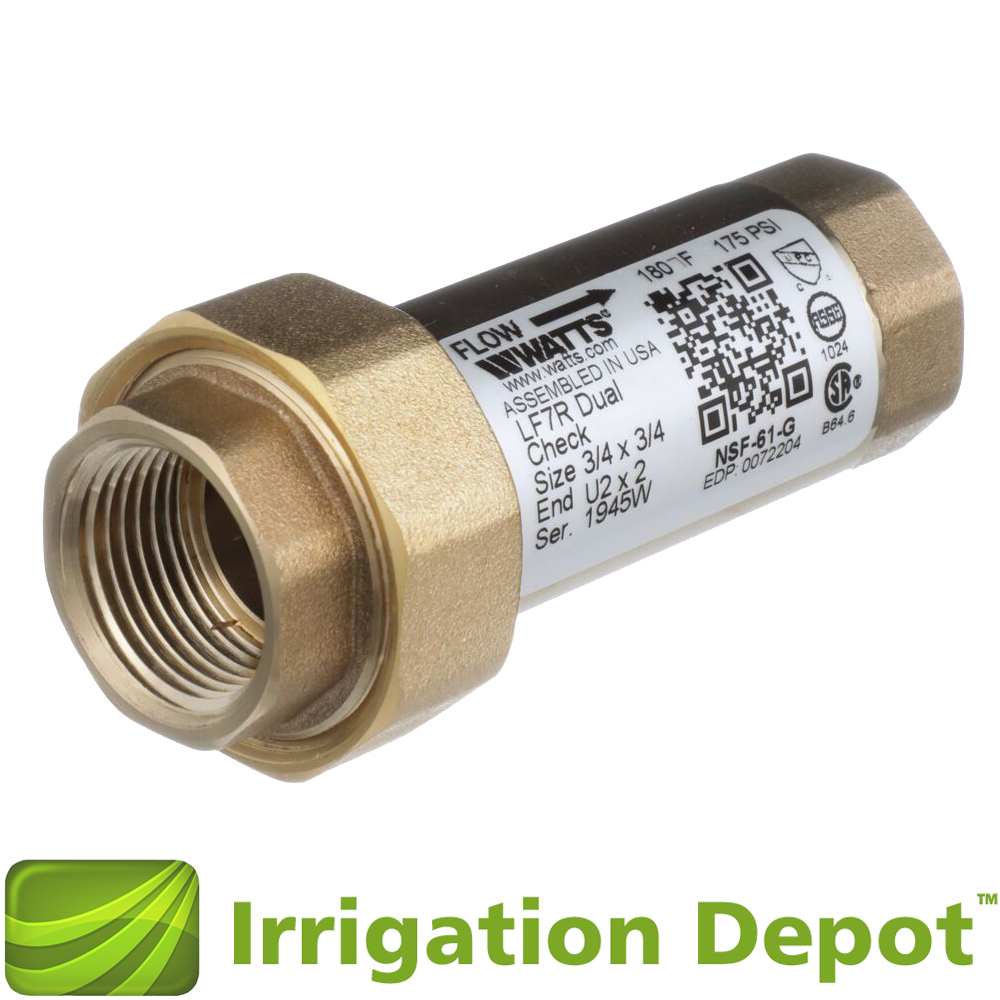

This 3/4 by 3/4 IN lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. The valve consists of a lead free brass body construction, with two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 psi (69 kPa) and maximum working pressure is 175 psi (12 bar).
Reduced Pressure Zone BackFlow Prevention Device | Febco 825Y
1" FPT Model
SKU : P-BF-825-010
The FEBCO Series 825Y Reduced Pressure Zone Assemblies are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection.
Features & Benefits
825 "Y Design" Reduced Pressure Zone Assembly w/ Ball Valve
Ultimate mechanical protection of portable water, against hazards of cross connection contamination.
Meets allspecicications of AWWA, ASSE, CSA and approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Modular relief valve for ease of maintenace.
Simple Service procedures. All internal parts serviceable in line.
Low Head Loss.
Spring loaded "Y" type check valves.
Internal relief valve pressure sensing passages.
Replaceable seat rings on all sizes.
End connection - NPT ANSI / ASME B1.20.1
Pressure – Temperature
Max. Working Pressure: 175psi (12.1 bar)
Hydrostatic Test Press: 350psi (24.1 bar)
Temperature Range: 32°F to 140°F (0°C to 60°C)
Materials
Valve Body: Bronze
Diaphragms: Nitrile, fabric reinforced
Elastomers: Silicone
Springs: Stainless Steel
Approvals – Standards
AWWA Conformance (C511)
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
WARNING! Irrigation systems supplied by domestic or private potable water systems are considered to be a potential pollution hazard to the water supply. These systems must include protection to prevent possible backflow of irrigation water into the potable water supply.
Federal law requires a proper backflow device to be installed on any watering system to prevent contamination of the supply; whether it be pump or city water. Check your local water authority for installation requirements & codes. In many rural areas; specific requirements for landscape irrigation systems may not be covered in local plumbing codes and/or enforcement may be limited. HOWEVER...limitation in local authority does not alter the basic requirement for protection of the potable water supply.
