Rain Bird up to 12 Station - Pro Irrigation System

Click image to enlarge

Rain Bird up to 12 Station - Pro Irrigation System
KIT-PACK12Z-INT
Quantity x

Option #1 - Rain Bird ESP-TM2 Wi-Fi Compatible Controllers - 12 Station - Indoor/Outdoor
KITPRO-12-RBC-TM2-12
Quantity x

Option #2 - Rain Bird ESP-MEi Wi-Fi Compatible Controllers - 13 Station - Indoor with 1x6 Station Plug-In Module and 1x3 Station Plug-In Module
KITPRO-12-RBC-ESP-4MEi
Quantity x

12 Zones Professional irrigation system. Ideal for small areas of flowerbeds or lawn and middle and large areas of lawn.

This kit connect directly to a 3/4" output connected on the main pipe inside (main connecting kit sold separately). The output should provide at least 56 PSI and 8 gallons of water per minute.

Particularity: One zone remain free to add another zone (Example: cedar hedge or garden or flower pots or other).

Note: The customer must ensure that the system will suit the configuration of its field.

The price of the optional controller is valid only with the purchase of this system.

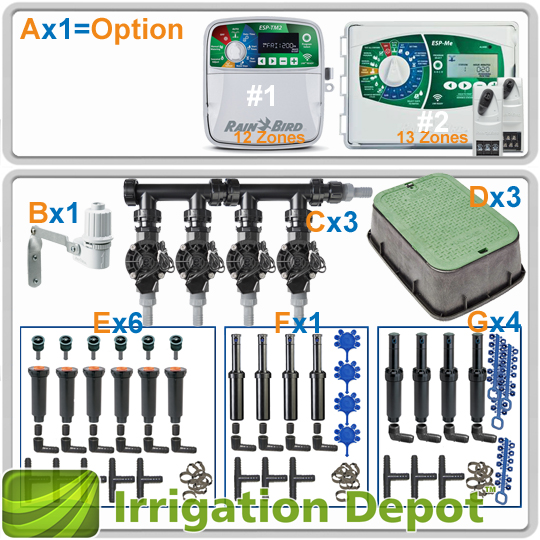

INCLUDED:

  • A- 1 Controller - The customer is free to choose the option of his controller
  • B- 1 Rain Sensor
  • C- 3 Rain Bird 4 Valve Manifold Kit (100-HV Series Valves)
  • D- 3 Rectangular Valve Box
  • E- 6 Kits for small distances (12' or 3,6 m and less)
  • F- 1 Kit for middle distances (16 to 21' or 4,9 to 6,4 m)
  • G- 4 Kit for large distances ( 22' to 30' or 6,7 to 9,1 m)

INCLUDED NOT SHOWN:

  • H- 3 Male Adapter 1" x 3/4" (Mipt x Ins)
  • I- 52 Color Flags
  • J- 1 Adjustment key

EXTRA PARTS INCLUDED FACILITING INSTALLATION

  • 10 Elbows 3/4"
  • 10 Couplings 3/4"
  • 50 Clamps 3/4" for STD or CSA poly pipe

NOT INCLUDED & REQUIRED:

Note: You want to replace the 12' nozzles of the item E ?

Easy! Just send us an e-mail with your order confirmation and we specify the nozzles of your choice. Example: 6 x 8', 4 x 10', 8 x 12'

3 year warranty on Rain Bird components: ESP-TM2 Timer, Rain Sensor, HV Valves and 3500 Series Sprinklers.

5 year warranty on Rain Bird components: 1800 and 5000 Series Sprinklers.

The price of the optional controller is valid only with the purchase of this system.

Do you want to add a Station kit to your system?

All kits are available individually by clicking here
